Medical Surgical Positioning Gel Pad Reusable Design

1  Introduction

Surgical positioning gel pad reusable. Hong Ye HY-9409 has become a benchmark grade for gel positioning pads for operating tables, prone surgery and eye surgery. The non-absorbent gel surface withstands 2000 plus Cidex and alcohol wipe-down cycles without degradation for hospital infection control. As a two-component addition-cure platinum jelly gel mixed 1:1 by weight, HY-9409 offers a viscosity of 2200+/-400 mPa.s, 20 to 40 minute operation time and 4 to 6 hour room temperature cure. It self-levels after pouring without vacuum degassing, and cures into a permanently soft, tacky, jelly-like mass that remains serviceable across a temperature range of -60 to 200 degrees Celsius. The cured gel resists ozone, UV, moisture, salt spray and common cleanroom disinfectants, with linear shrinkage below 0.1 percent and dielectric strength above 20 kV/mm.

This technical analysis examines the material properties, installation methodology and field performance of HY-9409 transparent jelly gel as used in this application area. Engineers and procurement managers will find actionable data on viscosity, cure schedule, penetration and chemical compatibility to support specification decisions.

2  Product Requirements

In this application, the gel sealant must meet the following requirements:

• Permanent tack and self-healing: remain soft and adhesive throughout service life, re-sealing after module replacement without re-pouring.

• Self-leveling viscosity of 1200-2000 mPa·s allows the gel to flow into narrow channels and corners without vacuum assistance.

• Wide service temperature range of -60°C to 200°C ensures reliable performance in outdoor and industrial environments.

• Low shrinkage below 0.1% with no condensation by-products eliminates voids, odor and corrosion risks.

• Strong electrical insulation: dielectric strength above 20 kV/mm and volume resistivity above 10^14 Ω·cm.

• Chemical resistance against ozone, UV radiation, moisture, salt spray and common disinfectants.

• Regulatory compliance: RoHS 2.0 and REACH SVHC as baseline; FDA 21 CFR 177.2600 and LFGB available for food-grade or skin-contact grades.

3 Corresponding Product Model Parameters

HY-9409 — transparent, low tack

  Appearance: transparent soft jelly gel

  Cone Penetration: 150±20 (1/10 mm)

  Viscosity (A/B mixed): 2000±300 mPa·s

  Mixing Ratio: Part A : Part B = 1 : 1 by weight

  Working Time: 20-40 min at 25°C

  Cure Time (RT): 4-6 h at 25°C

  Heat Cure: 30-60 min at 60-80°C

  Hardness / Feel: cone penetration 150 (firm)

  Density: 0.97 g/cm³

  Linear Shrinkage: <0.1%

  Service Temperature: -60°C to 200°C

  Dielectric Strength: >20 kV/mm

3.2  Grade Selection Guide

• HY-9400 (blue, cone penetration 200): highest tack and softness; the standard choice for HEPA filter gel channels, biosafety cabinet seals and any application requiring maximum adhesion and re-sealability.

• HY-9405 (blue, cone penetration 170): medium tack and firmness; suitable for electronic potting, sensor encapsulation and applications requiring a balance of softness and dimensional stability.

• HY-9409 (transparent, cone penetration 150): lowest tack and firmest feel; preferred for transparent gel pads, intimate apparel, prosthetic devices and applications requiring visual clarity or easy repositioning.

4  General Technical Parameters

  Product Type: Two-component addition-cure platinum-catalyzed silicone jelly gel (RTV-2)

  Mixing Ratio: Part A : Part B = 1 : 1 by weight

  Cure System: Platinum addition cure, no condensation by-products

  Viscosity (mixed): 1200-2000 mPa·s depending on grade

  Cone Penetration: 150-200 (1/10 mm)

  Working Time: 20-40 minutes at 25°C

  Cure Time: 4-6 h at 25°C; 30-60 min at 60-80°C

  Operating Temp: 18-35°C recommended for pouring

  Service Temp: -60°C to 200°C continuous

  Linear Shrinkage: <0.1%

  Dielectric Strength: >20 kV/mm

  Volume Resistivity: >1×10^14 Ω·cm

  Thermal Conductivity: 0.18-0.22 W/(m·K)

  Self-Leveling: Yes, no vacuum degassing required

  Self-Healing: Yes

  Shelf Life: 12 months sealed below 25°C

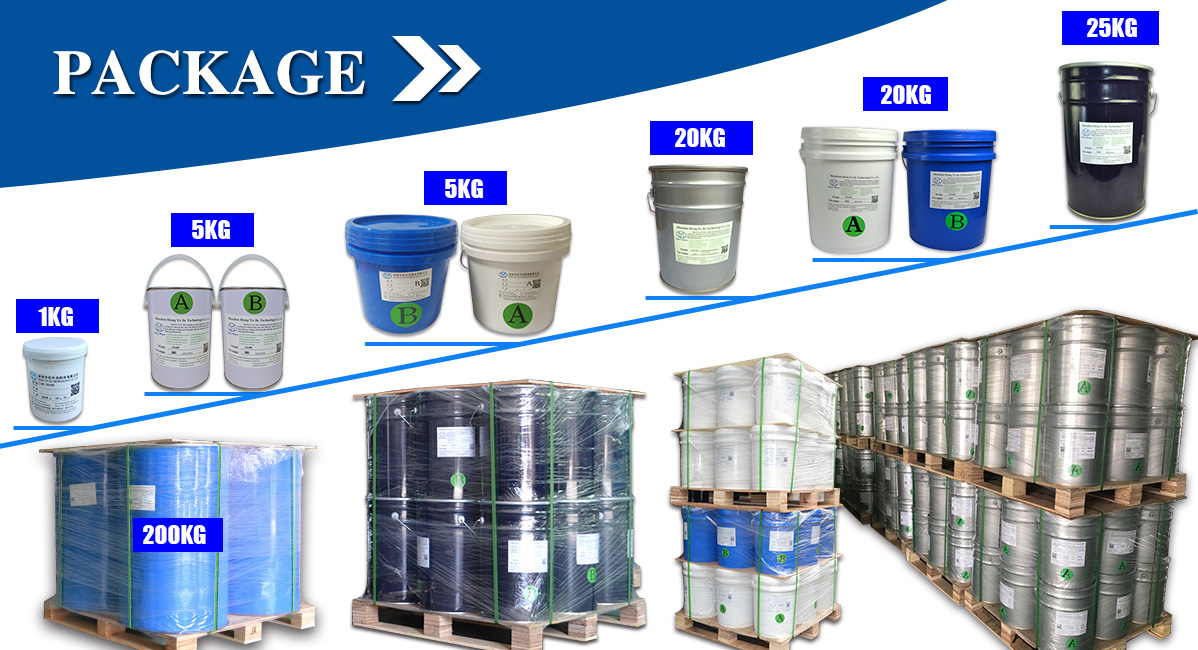

  Packaging: 1kg, 5kg, 20kg, 25kg, 200kg kits (A+B)

5  Frequently Asked Questions

Q: Why is my cured gel sticky or soft in some areas?

A: Usually inaccurate 1:1 ratio, insufficient mixing, or unstirred Component B. Sulfur/tin/amine/phosphorus contamination inhibits platinum cure. Use clean dedicated tools.

Q: Can I cure faster with heat?

A: Yes, 30-60 min at 60-80°C. Do not exceed 100°C to avoid surface skinning and trapped bubbles.

Q: Is vacuum degassing needed?

A: Generally no. HY-94 self-levels and self-degasses. Only optical or high-voltage electronic applications may require vacuum.

Q: What is the shelf life?

A: 12 months sealed below 25°C away from sunlight. Reseal after opening and use within 3 months. Always stir B before use.

Q: Is it safe for skin contact?

A: HY-9400 and HY-9405 can meet FDA 21 CFR 177.2600 and LFGB requirements on request. Standard grades meet RoHS 2.0 and REACH SVHC.

Q: What is the coverage of a 20kg kit?

A: Approximately 60-100 standard 610×610mm HEPA modules. Formula: channel length × width × depth × 0.97 g/cm³.

Q: Can cured gel be repaired?

A: Yes. HY-94 self-heals after minor displacement. For major repairs, remove contaminated gel, clean with isopropyl alcohol and re-pour fresh gel.

6  Quality Assurance & Certification

• ISO 9001 certified manufacturing facility in Shenzhen with 20,000 square meters of production area.

• Monthly addition-cure silicone capacity exceeding 500 tons, ensuring stable supply for volume orders.

• Every batch is released with a Certificate of Analysis covering viscosity, cone penetration, cure time, color and tack.

• Documented quality control procedures span incoming raw material inspection, in-process monitoring and finished-product testing.

• Technical team with an average of 10 or more years of silicone industry experience provides formulation and troubleshooting support.

• Custom formulation, color matching and private-label or neutral packaging are available for volume customers.

6.2  Certifications & Compliance Documents

• RoHS 2.0 — restriction of hazardous substances in electrical and electronic equipment.

• REACH SVHC — EU chemicals regulation compliance.

• ISO 9001:2015 — quality management system certification.

• FDA 21 CFR 177.2600 — available on request for food-contact and skin-contact grades.

• LFGB — available on request for food-grade applications in the European market.

• MSDS/SDS — safety data sheet provided with every shipment.

7  Conclusion

Hong Ye HY-9409 transparent jelly gel provides a technically proven, field-validated sealing solution for this application. Its self-leveling viscosity, 20-40 minute working time, 4-6 hour room-temperature cure, shrinkage below 0.1% and wide -60°C to 200°C service range make it suitable for the most demanding sealing and potting requirements. Proper surface preparation, thorough B-component stirring before each use and accurate 1:1 weight-ratio mixing are the three factors that determine success; when these are followed, the gel delivers multi-year zero-leakage performance with minimal maintenance.
