Blue Hospital Operating Room HEPA Gel Seal | Cost-Effective Standard Grade Two Component Tank Sealant Jelly Gel

Product Overview:

With a buttery soft consistency measured at a penetration of 200 plus or minus 30 (0.1mm) and a permanently high-tack surface, HY-9400 delivers reliable zero-leakage sealing that outlasts conventional gaskets, foams and caulks by a wide margin. The product is mixed 1:1 by weight, self-levels after pouring, cures at room temperature within 4 to 6 hours, and requires no vacuum degassing, making it one of the easiest high-performance sealants to deploy on construction sites and in production lines worldwide. As a cost-effective standard grade, this variant offers proven performance at a competitive price for high-volume production. It is specifically formulated for operating theatre terminal HEPA boxes and laminar flow ceiling modules, where decades of field experience have shown that the seal must remain soft, tacky and compliant through thousands of hours of thermal cycling, vibration and maintenance operations. Backed by Hong Ye's nearly 20 years of silicone manufacturing expertise and supplied to customers in over 60 countries, HY-9400 combines the performance of premium imported gels with the cost efficiency, short lead time and responsive technical support of a Chinese manufacturer. Whether you are sealing a single biosafety cabinet or outfitting a 100,000-square-meter semiconductor fab, HY-9400 delivers consistent batch-to-batch quality, comprehensive documentation and application engineering support from first sample through full production ramp.

Key Features:

• Resistant to ozone, UV, moisture, salt spray and common cleanroom cleaning agents

• Low exothermic peak during cure, safe for heat-sensitive electronic components and thin films

• 1:1 mix ratio by weight, easy to meter with manual or automated dispensing equipment

• Repairable and reworkable: old gel can be topped up with fresh gel without full removal

• 12 month shelf life when sealed and stored below 25C in dry ventilated conditions

• Customizable blue or transparent color, penetration from 120 to 260 (0.1mm), and tack level

• Linear shrinkage below 0.1%, maintains full contact with gel channel walls for years

• Self-leveling after pouring, no vacuum degassing required, saving process time and equipment

• No VOC emissions during or after cure, suitable for enclosed cleanroom and medical environments

• Soft jelly-like consistency with buttery skin feel, comparable to premium German Wacker gel

• Recommended model: HY-9400 - Blue high tack tank sealant jelly gel

Technical Parameters:

Detailed Application Scenarios:

In cleanroom ceiling HEPA filter installations, HY-9400 is poured directly into the anodized aluminum or powder-coated steel gel channel that runs along the perimeter of the filter housing. When the HEPA filter is lowered into position, its knife-edge blade sinks into the soft gel, creating a continuous airtight seal with no gaps, compressed set or hard spots. During scheduled filter replacement, maintenance crews simply lift the old filter, wipe the gel surface if needed, drop in the new filter, and the high-tack gel flows back around the blade within minutes. A single 20kg pail typically seals 60 to 100 standard 610x610mm HEPA modules depending on channel depth.

For semiconductor, display panel and lithium battery dry rooms, even a microscopic bypass leak around a HEPA filter can ruin a production batch by introducing moisture or particulates. HY-9400 addresses this with its ultra-low hardness (penetration 200) and high conformability, which allow it to fill every microscopic scratch, weld mark and tolerance gap on the knife edge and channel surface. Its low linear shrinkage of less than 0.1 percent ensures the gel does not pull away from the channel walls after cure, and its -60C to 200C service range covers both cold-air lithium dry rooms and hot ceiling plenum environments.

Application & Operating Instructions:

Step 1 Surface preparation: Clean the gel channel with a dry lint-free cloth. Remove all oil, water, rust, latex residue and old cured silicone fragments. For new filter housings, wipe with isopropyl alcohol and allow to fully dry.

Step 2 Component B preparation: Before each use, stir component B thoroughly for at least 2 minutes. The blue pigment and catalyst can settle during storage; incomplete stirring causes color variation and soft or uncured spots.

Step 3 Weighing and mixing: Weigh A and B at exactly 1:1 by weight using a calibrated scale. Pour into a clean mixing container and stir slowly for 3 to 5 minutes, scraping the sides and bottom regularly. Avoid fast stirring which introduces bubbles.

Step 4 Pouring: Pour the mixed gel slowly along one end of the channel and allow it to self-level to a depth of 15 to 25mm. Do not pour from a height to avoid air entrapment. For long channels, pour in sections.

Step 5 Curing: Allow 4 to 6 hours at 25C before installing the HEPA filter. Full physical properties develop after 24 hours. No vacuum degassing is required.

Step 6 Contamination prevention: Use polyethylene, nylon or nitrile gloves. Never use natural rubber latex gloves. Avoid contact with sulfur-containing materials, amines, phosphorus compounds, tin-cured silicone and PVC, as these can inhibit the platinum catalyst and prevent cure.

Model Selection Guide:

The HY-94 series offers three standard grades to cover the full range of jelly gel applications, and custom formulations are available for volume orders:

HY-9400 (Blue, High Tack, Penetration 200): The softest and most aggressive grade, designed for HEPA/ULPA filter gel seals in cleanrooms, biosafety cabinets, pharmaceutical GMP facilities, hospital operating rooms, semiconductor fabs, lithium battery dry rooms and data centers. Choose this model when maximum self-healing and conformability to knife-edge channels are the high priority.

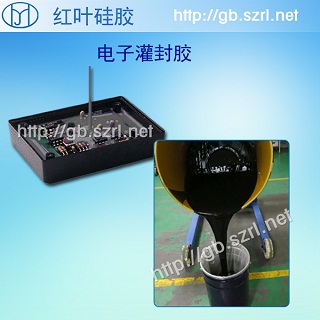

HY-9405 (Blue, Medium Tack, Penetration 170): The balanced all-rounder for instrument meter sealing, electronic encapsulation and outdoor waterproofing. Typical applications include smart water/gas/electric meters, automotive ECUs and sensors, solar PV junction boxes, LED modules, underwater lights and pressure sensors. Choose this model when you need a combination of flowability, structural support, vibration damping and repairability.

HY-9409 (Transparent, Low Tack, Penetration 150): The premium skin-contact grade for intimate apparel and medical products. Typical applications include silicone bra pads, push-up inserts, breast prostheses, nipple covers, bridal and swimwear gel pads, orthopedic insoles and surgical positioning pads. Choose this model when clarity, dry skin feel, anti-yellowing and body-safe materials are required.

If your project requires a different penetration, color, cure speed or special certification (FDA, LFGB, UL94), contact Hong Ye technical support for a custom formulation. Custom MOQ starts from 20kg and typical lead time is 7 to 10 working days.

Recommended Application: Hospital Operating Room HEPA Gel Seal

Quality & Compliance:

Every batch of Hong Ye HY-94 series jelly gel is manufactured under ISO 9001 certified quality management and tested for viscosity, mix ratio, cure time, penetration, color and tack before release. A Certificate of Analysis (COA) is provided with every shipment. Standard grades are tested to RoHS 2.0 and REACH SVHC requirements. HY-9409 uses food-contact grade raw materials and can be supplied with FDA 21 CFR 177.2600 and LFGB Section 30/31 test reports on request. All products carry a 12 month shelf life from manufacture date when stored sealed below 25C. Hong Ye has supplied jelly gel to cleanroom contractors, meter manufacturers, intimate apparel brands and medical device OEMs in over 60 countries since 2005.

Packaging:

Standard packaging options include 1kg trial kits (500g A + 500g B), 5kg kits, 20kg pails, 25kg pails and 200kg drums. Components A and B are supplied in separate containers within each kit. Custom packaging and private labeling are available for orders above 200kg. All kits are clearly labeled with batch number, manufacture date, expiry date and safety information.

Competitive Advantages:

Hong Ye HY-9400 stands out in the global jelly gel market through a combination of formulation expertise, vertical integration and customer-focused service. Our in-house silicone polymer synthesis and compounding lines give us full control over raw material quality and batch consistency, while our 20,000-square-meter Shenzhen factory supports monthly output of over 500 tons of addition-cure silicone. This scale allows us to offer prices typically 30 to 50 percent lower than imported German Wacker and American Magna-Dyne gels without compromising on performance. We maintain local stocks of standard grades for 3 to 5 working day delivery, and our technical sales engineers are available for on-site pouring trials, gel channel design reviews and custom formulation projects. For OEM customers we provide private labeling, neutral packaging, COA documents in multiple languages and dedicated batch traceability, making it straightforward to integrate our gel into your supply chain whether you consume 20kg per month or 20 tons per quarter.

Ordering and Logistics:

To order HY-9400, contact Hong Ye sales with your required model, quantity, destination country and preferred courier. We accept T/T bank transfer, PayPal for sample orders, and Alibaba Trade Assurance for online orders. Sample kits up to 1kg are free; customers only pay the international courier fee, typically 25 to 60 USD depending on destination. Standard packaging ships from stock within 3 to 5 working days after payment. We ship worldwide via DHL, FedEx, UPS and sea freight for bulk orders. Dangerous goods classification is not required for addition-cure silicone gel under most transport regulations, simplifying international shipping. All shipments include commercial invoice, packing list, COA and safety data sheet.

Technical Support and Customization:

Hong Ye operates a dedicated technical service team staffed by silicone chemists and application engineers with an average of more than 10 years of industry experience. We support customers throughout the entire product lifecycle: initial grade selection based on your drawings and service conditions, on-site or remote pouring trials, gel channel and mold design review, cure profile optimization, failure analysis and ongoing quality improvement. For customers with special requirements, our R&D center can develop custom formulations with adjusted penetration (120 to 260 in 0.1mm units), custom Pantone colors, accelerated or delayed cure profiles, flame retardant grades meeting UL94 V-0, thermal conductive grades, food-contact FDA and LFGB certified grades, and medical grade formulations with biocompatibility testing. Custom development typically takes 7 to 14 working days from confirmed requirements to shipped samples, and the custom formula becomes your exclusive formulation for ongoing orders. We also provide gel consumption calculation, cost-per-seal analysis and comparison testing against your current sealant to help you make data-driven sourcing decisions.

FAQ:

Q: Does the gel require vacuum degassing before pouring?

A: For HEPA filter sealing, meter potting and most industrial applications, no vacuum degassing is needed. The gel is formulated to self-level and release air naturally. For crystal-clear bra pads and breast forms where optical clarity is critical, we recommend vacuum degassing at -0.08 to -0.09 MPa for 2 to 3 minutes after mixing.

Q: How long does the gel take to cure and can I speed it up?

A: At 25C the gel reaches touch-dry in 4 to 6 hours and full properties after 24 hours. For mass production, heat-curing at 60 to 80C reduces demolding time to 30 to 60 minutes. Do not exceed 100C as it may cause discoloration or surface defects. Low temperatures below 15C will significantly slow the cure.

Q: How much gel do I need per HEPA filter or per product unit?

A: For a standard 610x610mm HEPA filter with a 15x25mm gel channel, approximately 200 to 350 grams of mixed gel is required per filter. A 20kg pail seals 60 to 100 filters. For bra pads, a typical push-up insert uses 30 to 80 grams per pair. We provide a free gel consumption calculator based on your channel dimensions or product drawings.

Q: What is the mixing ratio and how accurate must it be?

A: All HY-94 series gels use a 1:1 mix ratio by weight. Accuracy should be within plus or minus 2 percent. Off-ratio mixing causes incomplete cure, soft spots or sticky surfaces. Always use a calibrated digital scale rather than estimating by eye or volume.

Q: Will the gel self-heal after a HEPA filter is removed and reinserted?

A: Yes. The cured gel remains permanently tacky and soft. When the knife edge is lifted, the gel temporarily separates; when reinserted, it flows back around the blade within minutes, restoring the airtight seal. This self-healing property is one of the key advantages over compressed gaskets and is especially valuable during periodic filter replacement in cleanrooms and biosafety cabinets.
