HY-916 Ultra Soft Pad Printing Silicone 14A High Elongation

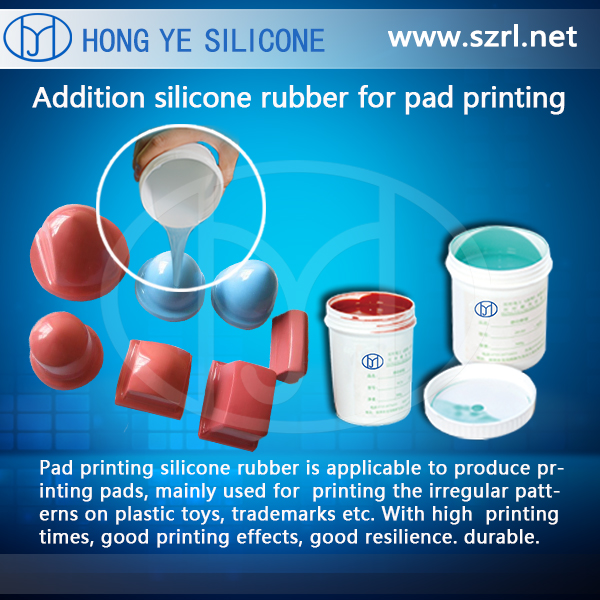

HY-916 is the softest grade in our pad printing silicone series at 14±2 Shore A. Made from premium silicone raw materials with imported catalyst. Ultra soft pad heads conform tightly to irregular curved surfaces. 570% highest elongation ensures excellent resilience and durability. Two component room temperature curing, easy operation. ISO 9001 certified with COA report for every batch.
Core Features • 14±2 Shore A ultra soft hardness • 570% highest elongation at break • Excellent resilience, no permanent deformation • Uniform ink pickup and clean release • 25±2 kN/m tear strength, abrasion resistant • Room temperature curing, no heating needed • 36000±2000 mPa.s viscosity, easy pouring • No oil bleeding, ink solvent resistant • ISO 9001 certified, COA included
Technical Parameters Model: HY-916 | Color: White | Hardness: 14±2 Shore A | Viscosity: 36000±2000 mPa.s | Operation Time: 30-40 min | Cure Time: 3-4 h | Tensile Strength: 3.5 MPa | Tear Strength: 25±2 kN/m | Elongation: 570% | Mix Ratio: 100:2~100:3 | Density: 1.10±0.03 g/cm3 Model: HY-901 | Color: White | Hardness: 30±2 Shore A | Viscosity: 32000±2000 mPa.s | Operation Time: 30-40 min | Cure Time: 3-4 h | Tensile Strength: 3.8 MPa | Tear Strength: 22±2 kN/m | Elongation: 380% | Mix Ratio: 100:2~100:3 | Density: 1.12±0.03 g/cm3 Model: HY-902 | Color: White | Hardness: 30±2 Shore A | Viscosity: 35000±2000 mPa.s | Operation Time: 30-40 min | Cure Time: 3-4 h | Tensile Strength: 4.0 MPa | Tear Strength: 24±2 kN/m | Elongation: 430% | Mix Ratio: 100:2~100:3 | Density: 1.15±0.03 g/cm3 Model: HY-912 | Color: White | Hardness: 30±2 Shore A | Viscosity: 32000±2000 mPa.s | Operation Time: 30-40 min | Cure Time: 3-4 h | Tensile Strength: 4.0 MPa | Tear Strength: 25±2 kN/m | Elongation: 340% | Mix Ratio: 100:2~100:3 | Density: 1.13±0.03 g/cm3
Application Scenarios Cosmetic packaging: Ultra soft 14A pad heads conform to curved perfume bottles, cream jars, lipstick tubes for clear pattern transfer. Crafts and gifts: Adapt to irregular shapes of resin figurines, ceramic items, metal souvenirs, wooden gift boxes. Uniform ink transfer and good abrasion resistance.
Operation Instructions
- Weigh Component A accurately.
- Add Component B at 100:2 to 100:3 ratio.
- Stir thoroughly for 3-5 minutes.
- Degas in vacuum for 3-5 minutes.
- Pour into mold slowly.
- Cure at room temperature 3-4 hours. Rest 24 hours before use.
Selection Guide HY-901: 30A general purpose, economical. HY-902: 30A high abrasion, longer life. HY-912: 30A multi color overprinting. HY-916: 14A ultra soft, best for complex curved surfaces.
Recommended Application Best for cosmetic bottles, perfume caps and craft figurines with complex curved surfaces.
Quality and Compliance ISO 9001 certified. Every batch tested with COA report. RoHS and REACH compliant. Over 20 years brand history.
Packaging A: 20kg/25kg bucket, 200kg drum. B: 1kg bottle. 1kg trial pack and 5kg small pack available. OEM available.
Competitive Advantages Self owned factory, 100+ tons monthly capacity. 30-50% lower than imported. 3-5 days delivery. Free technical support. Custom hardness and color available.
Ordering and Logistics T/T or PayPal. Stock items ship in 3-5 days. Sea, air or express shipping. Not dangerous goods. COA and MSDS included.
Technical Support Experienced engineers provide full lifecycle support. Custom formulations available (hardness 10A-50A, color, cure time). MOQ 50kg, 7-10 days lead time.
Precautions Wear nitrile gloves. Avoid nitrogen, sulfur, tin, phosphorus substances. Weigh accurately. Mix thoroughly. Cure below 50C. Ventilate working area.
Storage Store 5-30C cool dry place. 12 months shelf life unopened. Reseal after use. Refrigerate 2-8C to extend life.
FAQ Q: How many prints per pad head? A: 50,000-100,000 prints under normal conditions.
Q: Will 14A soft head deform? A: No. 570% elongation gives excellent resilience, recovers instantly.
Q: Why incomplete cure? A: Check ratio, mixing, temperature above 20C, no inhibiting substances.
