High-Humidity Gel Sealing for Food Plant AHU and Cooling Coil Filters

INTRODUCTION

Food processing plants operating dairy, meat, bakery, and beverage production lines require air handling units with HEPA terminal filters to control airborne particulates, mold spores, and allergen cross-contamination. The operating environment presents some of the harshest conditions any filter sealing system will face: relative humidity routinely exceeds 90% during cleaning cycles, condensate drips continuously onto filter frames from cooling coils, and daily washdown with sodium hydroxide and peracetic acid cleaners creates a chemical assault on sealing materials. Neoprene and EPDM gaskets in these conditions absorb moisture, swell unevenly, and develop mold growth within weeks, creating bypass paths that compromise food safety. Platinum-cured silicone jelly gel fundamentally resists this degradation mechanism. The Si-O-Si polymer backbone does not absorb water, supports no mold or bacterial growth, and resists hydrolysis from caustic and acid cleaning agents. HY-9400 flows into the filter channel at 1200 mPa·s, curing to a Shore 00 gel that maintains tack and elasticity even when submerged in condensate. In dairy plants where washdown occurs twice daily at 70-80°C with 3% NaOH solution, the gel maintains its sealing properties for the full 3-5 year filter service interval. The blue color also aids visual inspection during daily hygiene audits, as any channel gap or gel separation is immediately visible against the stainless-steel filter frame.

PRODUCT REQUIREMENTS

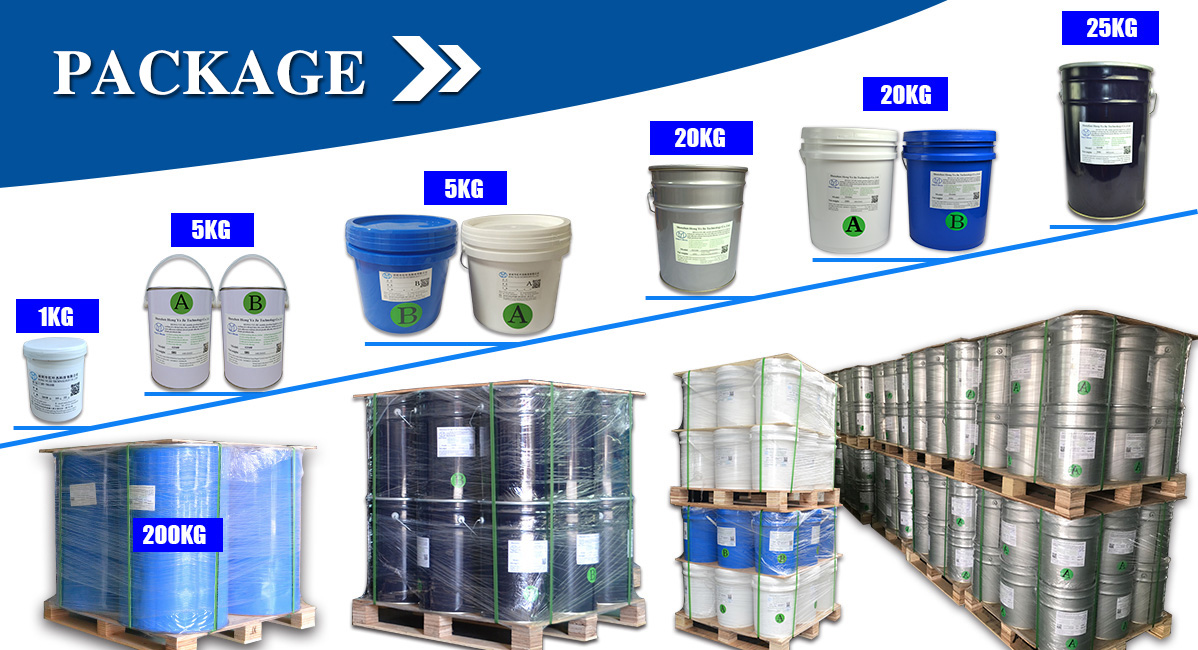

In food plant AHU and cooling coil filter sealing service the gel must: maintain seal integrity in continuous humidity above 90% RH with daily condensate exposure from cooling coils; resist daily washdown with 3-5% NaOH and peracetic acid solutions at 70-80°C without hydrolysis or surface degradation; support no mold, yeast, or bacterial growth on the gel surface in nutrient-rich food processing atmospheres; adhere durably to stainless steel and food-grade aluminum filter frames through thermal cycling between production and washdown temperatures; provide blue coloration for rapid visual inspection during daily hygiene and HACCP audits; comply with ISO 9001, RoHS 2.0, and REACH SVHC, with optional FDA 21 CFR 177.2600 test data available for food-contact-area documentation; and be supplied in 5 kg kits or 25 kg drums with food-grade packaging compliance.

CORRESPONDING PRODUCT MODEL PARAMETERS

Recommended model: HY-9400 - Blue high-tack grade for food plant AHU and cooling coil filter gel channels, providing moisture-resistant, mold-proof sealing that withstands daily caustic washdown.

GRADE SELECTION GUIDE

FREQUENTLY ASKED QUESTIONS

Q: Is HY-9400 safe for use in filter frames located above open food production lines where condensate drippage could contact food products?

A: HY-9400 is a platinum-cured silicone gel whose cured matrix is chemically inert and non-toxic. While it is primarily designed as an air filtration sealant rather than a direct food-contact material, third-party testing per FDA 21 CFR 177.2600 is available upon request to demonstrate that no harmful substances migrate from the gel. For installations where condensate from the gel area could directly contact food, we recommend specifying this test data in the procurement documentation for food safety audit compliance.

Q: How does the gel perform when the AHU operates in alternating hot production and cold washdown cycles?

A: Food plant AHUs cycle between production conditions at 25-35°C with high humidity and washdown conditions at 70-80°C with caustic chemicals followed by rapid cool-down. HY-9400 accommodates this thermal cycling because its Shore 00 gel consistency provides elastic recovery without fatigue cracking. The platinum-cured Si-O-Si backbone does not undergo phase changes or hardening through repeated thermal cycles. Field data from dairy installations shows no seal degradation after 3 years of twice-daily washdown cycling.

Q: What is the recommended gel fill procedure for a food plant retrofit during a production shutdown window?

A: Clean channels with isopropanol and dry completely. Mix HY-9400 at 1:1 using a static mixing nozzle, pour into channels, allow 4-6 hours at ambient for cure. If time is tight, portable heaters at 60°C reduce cure to 1-2 hours. Inspect fill, install HEPA filter. Each 5 kg kit fills 8-12 frames. Production resumes once gel is cured and filters seated.

QUALITY ASSURANCE & CERTIFICATION

Every batch of Hong Ye HY-94 series jelly gel is produced under ISO 9001 certified quality management in a dedicated silicone workshop, with incoming raw-material inspection, in-process mixing control and finished-product testing on every batch. Before release each lot is checked for viscosity, mix ratio, cure time, penetration, color and tack, and a Certificate of Analysis (COA) listing the actual measured values ships with every order. Standard grades carry RoHS 2.0 and REACH SVHC test reports; skin-contact and baby-care grades can be supplied with FDA 21 CFR 177.2600 and LFGB Section 30/31 reports and, on request, ISO 10993 biocompatibility testing; flame-retardant grades meet UL94 V-0. Food-contact, medical and export orders are supported by the corresponding compliance files for customer qualification. Hong Ye has manufactured and supplied jelly gel to contractors, filter builders and equipment makers in over 60 countries since 2005, with monthly capacity above 500 tons, batch traceability and multi-language documentation. Application engineers provide grade selection, sample evaluation, on-site or video pouring guidance and after-sales follow-up, and technical data sheets (TDS), safety data sheets (SDS) and test reports are available before order to support tender and audit processes.

CONCLUSION

The market for tank sealant jelly gel in this application area continues to expand as cleanroom construction, electronic encapsulation, automotive electrification, energy storage and consumer product manufacturing drive demand for reliable two-component addition-cure silicones. Hong Ye supports this growth with ISO 9001 certified production, 500-plus ton monthly capacity, complete compliance documentation and responsive application engineering. Buyers evaluating suppliers are advised to look beyond unit price and compare batch-to-batch consistency, documentation completeness, delivery stability and technical service responsiveness, because the cost of a sealing or potting failure - rework, downtime, certification delay or product recall - far exceeds the incremental cost of a quality gel. Choosing the correct grade for the channel, operating temperature and service environment, following the 1:1 mixing and pouring procedure and validating with a small trial batch all help secure a durable seal. Hong Ye welcomes sample requests and application enquiries; our engineers will recommend the HY-9400, HY-9405 or HY-9409 grade that matches the sealing or potting requirement and support qualification from first sample through volume production.
